Belgard - Diamond Pro Quarried Face Wall
In Stock
Only %1 left
Product Code
16053902
Have a question about this product or need assistance? Send Us a Message
This product is only available for in-store selection and purchasing.
How to Get It?
-
In-Store Pickup
Not available for this item -
Boxed Shipment to Home or Jobsite
Not available for this item -
Local Delivery via Flatbed Truck
Not available for this item -
Local Delivery via Dump Truck
Not available for this item
For easy returns in store and online read our Return Policy
Features & Benefits:
- Rear-lip locator
- Large cores for ease in handling
- Matching corner and cap for a seamless appearance
- Gravity walls can be built up to 4 ft high, including buried course with a 7.1 batter
- Walls in excess of 50 ft high have been built with Diamond Pro when combined with geosynthetic reinforcement
- Minimum outside radius, measured from the top course to the front of the units: 4 ft
- Minimum inside radius, measured on the base course to the front of the units: 6ft

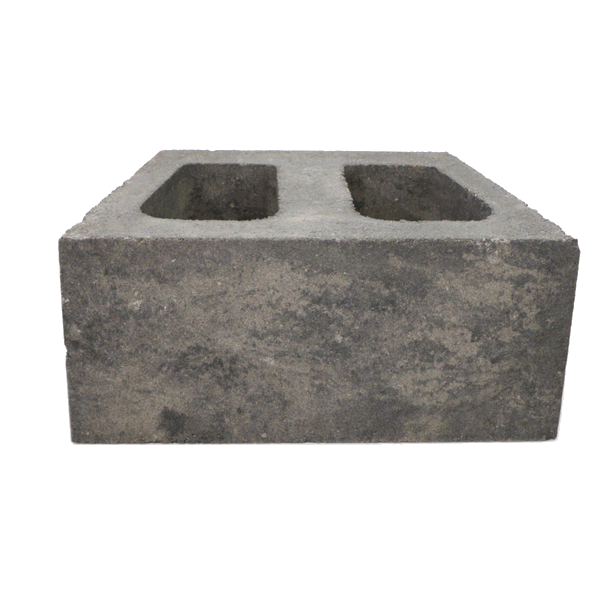

Diamond Pro Quarried Face Wall Block
| Wall Block Height | 8" | |
| 203.2 mm | ||
| Wall Block Width | 12" | |
| 304.8 mm | ||
| Wall Block Length | 18" | |
| 457.2 mm | ||
Â
| Pallet Coverage | 36 ff | |
| Pieces Per Pallet | 36 pcs | |
| Weight Per Pallet | 2,412 lbs | |
Â
| Layers Per Pallet | 4 layers | |
| Sq Ft Per Layer | 9 ff | |
| Pieces Per Layer | 9 pcs | |
Please Note: Weights are approximate and do not include shipping pallets.

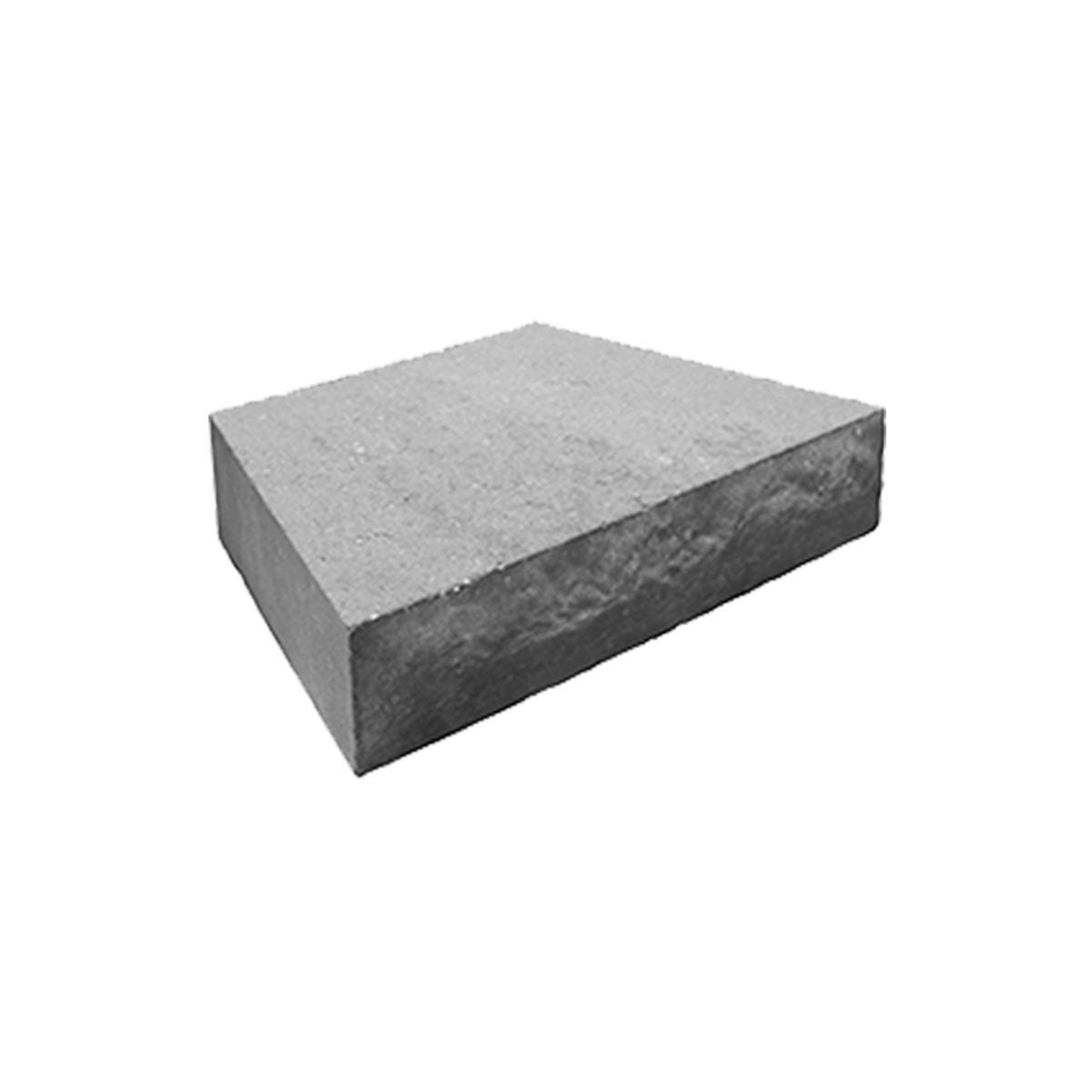

Diamond Pro Quarried Face Cap
| Cap Height | 4" | |
| 101.6 mm | ||
| Cap Width | 12" | |
| 304.8 mm | ||
| Cap Length (Front Side) | 18" | |
457.2 mm | ||
| Cap Length (Back Side) | 12.5" | |
317.5 mm | ||
Â
| Pallet Coverage | 75 lnft *Linear Footage will vary with fliipped/offset pieces | |
| Pieces Per Pallet | 54 pcs | |
| Weight Per Pallet | 3,312 lbs | |
Please Note: Weights are approximate and do not include shipping pallets.

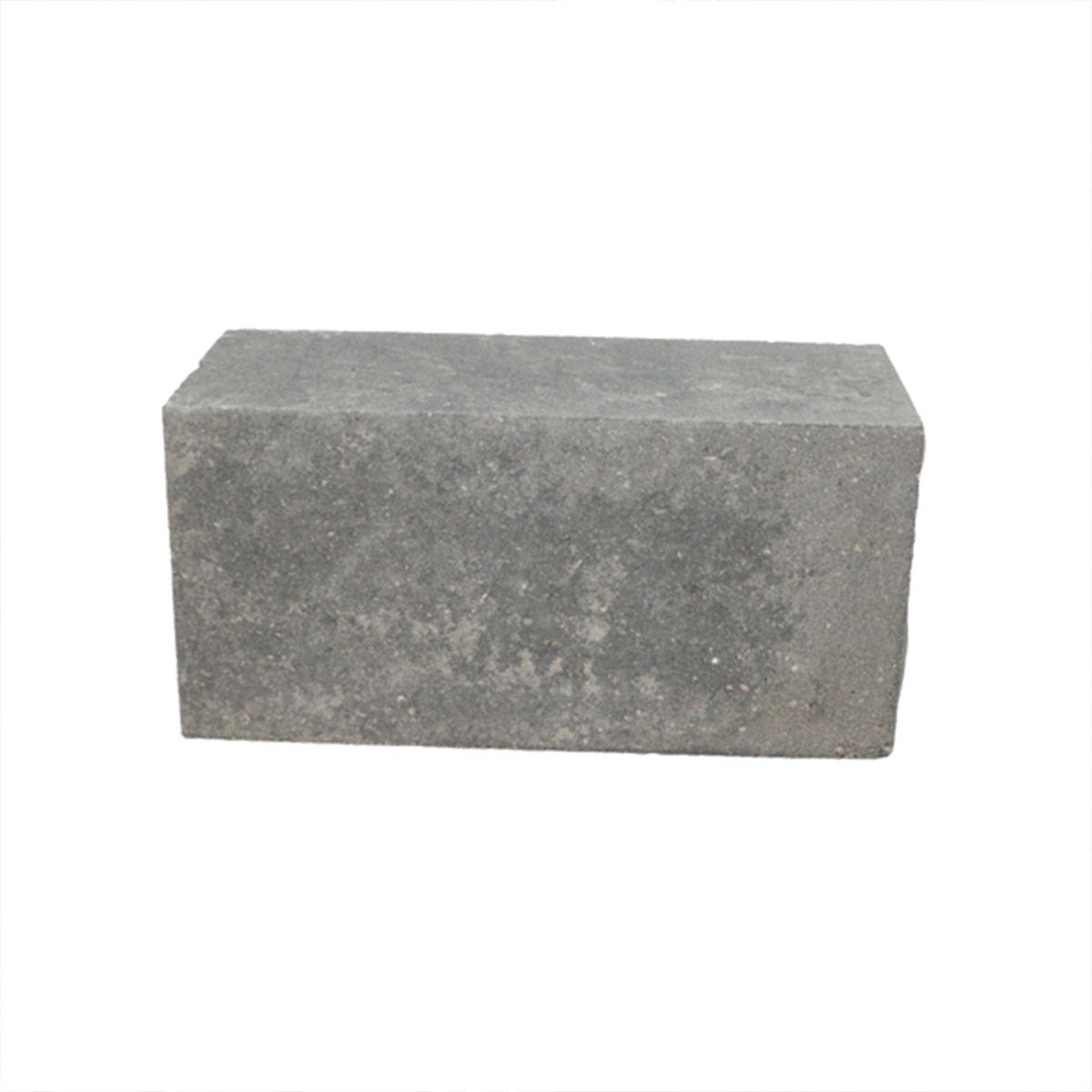

Diamond Pro Quarried Face Corner
| Corner Height | 8" | |
| 203.2 mm | ||
| Corner Width | 8" | |
| 203.2 mm | ||
| Corner Length | 17" | |
| 431.8 mm | ||
Â
| Pieces Per Pallet | 54 pcs | |
| Weight Per Pallet | 1,920 lbs | |
Please Note: Weights are approximate and do not include shipping pallets.
